AS-63
$13,200
Self-pickup from nearest sea port. Syd.Mel.Bris.Ade
No returns - Ship from overseas factory
| Quantity: | |
|---|---|
Product Description

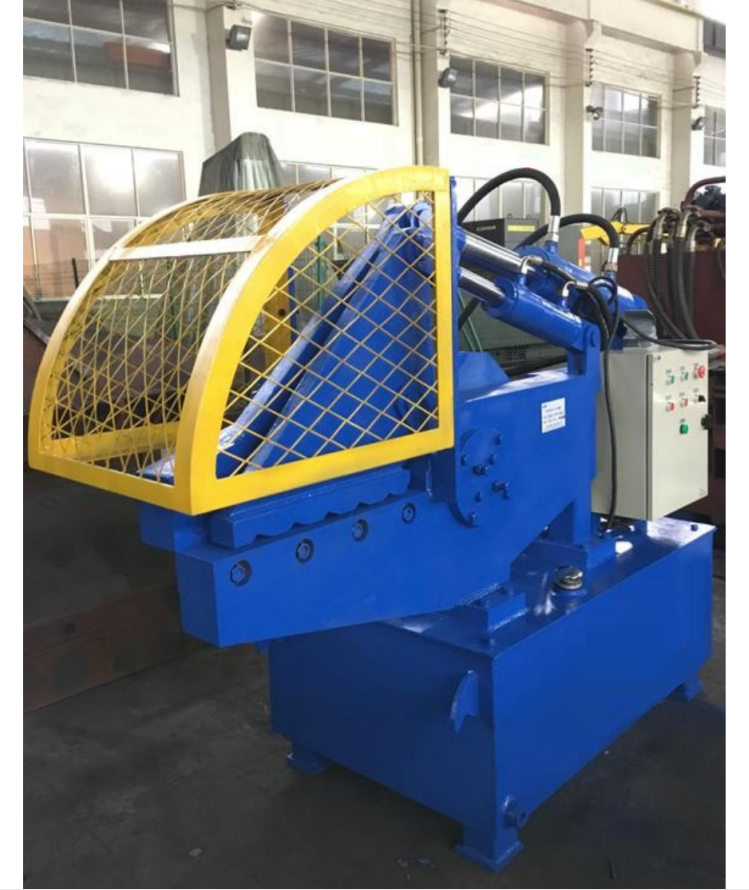

AS-63 alligator shear comes complete with 600mm long blades and 63 tons of Cutting force
Features:
Adopting hydraulic drive, it features simple operation & easy maintenance. Safe and realizable.
Shear force 63 ton, blade length 600mm
No footing bolts needed in installation.

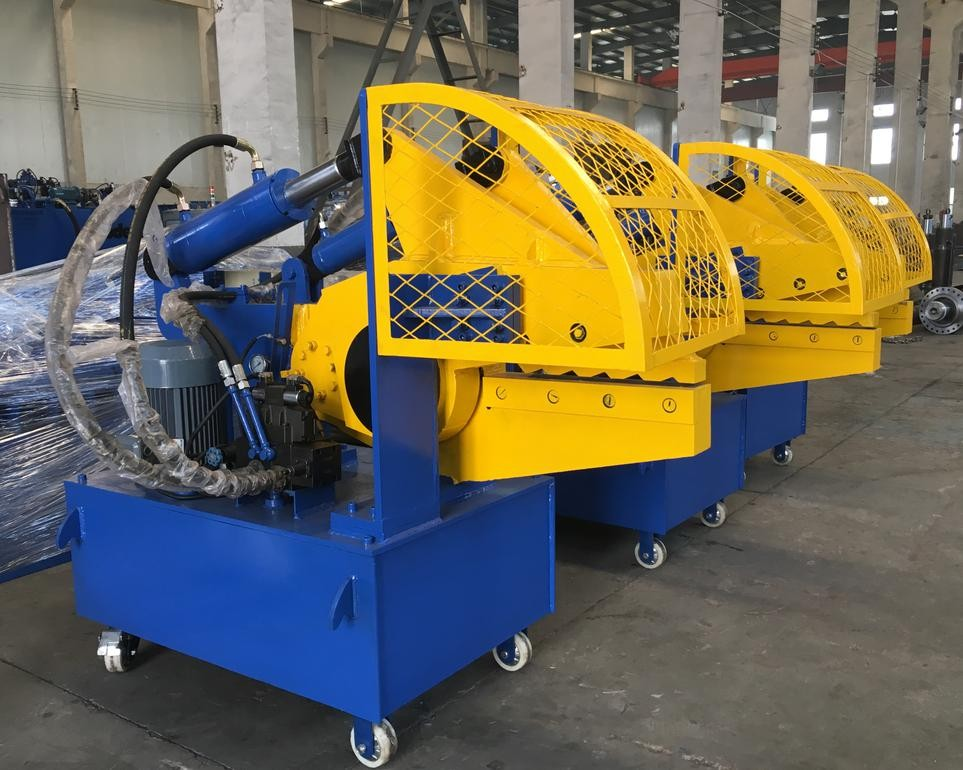

Strong castor wheels are optional.
Two Control Modes: With an automatic cutting cycle, or step switch for single cycle
Specifications:
No. |
Item |
Units |
Quantity |
1 | Maximum Shear Capability | KN | 630 |
2 | Maximum Pressure Capability | KN | 120 |
3 | Maximum Cutting Blade Opening | MM | 335 |
4 | Length of Cutting Blade | MM | 600 |
5 | Shearing times of per minutes | times/min | 9-16 |
6 | System Work Pressure | Mpa | 21 |
7 | Motor | 7.5KW. 3 Phase 415V 50Hz | |
8 |
Oil pump | Model | 40YCY14-1B |
displacement | 40ml/r | ||
9 |
Size of Sheared material (mm) | Round Steel | Ø 20 |
Square Steel | 25*25 | ||
Steel Angle | 40*40*4 (three pcs) | ||
Steel Channel | 100*43*5.5 | ||
Plate | 14*100 | ||
Note : Being applied lever magnifying structure; the blade has different shear force at every part. The specification in the form means that when the system pressure is 21.5Mpa, the material’s tensile breaking strength limit ≤ 450 Mpa, and which is situated at the location of most shear force. | |||
Warranty:
One year free parts warranty ( Against defects in materials and workmanship, excl.blades )
Shipping:
Will ship over from overseas factory upon order. for details, please contact us
Pricing:
Price is for self-pickup from nearest sea port. Sydney/Melbourne/Brisbane/Adelaide
and it's GST exclusive.
